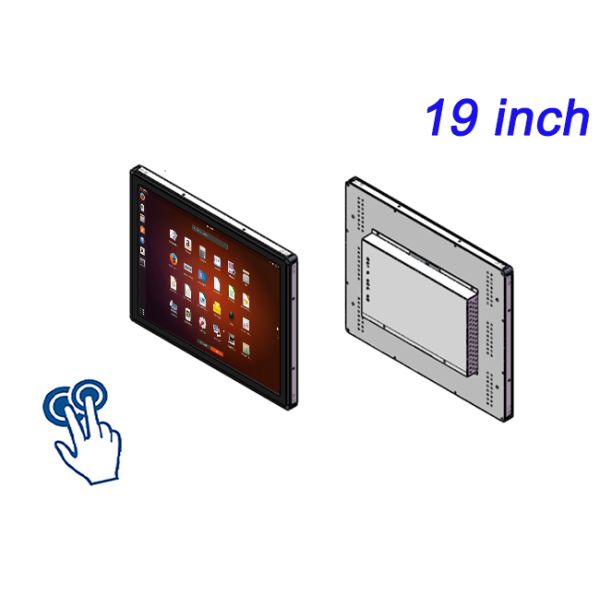

19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors

Name: 19Inch ZXTLCD SelfService Terminal Capacitive Embedded Industrial Control Touch Screen Monitors
Brand: ZXTLCD
Price: 1 USD

Wholesale 19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors from china suppliers

Operating Temperature : 0°C to 50°C

Screen Size : 19 inch

Touch Screen : 10-point capacitive touch screen

View Angle : 178°/178° (H/V)

80mm Thermal Printer : Support, built-in

Application : Hospitality, hotel and catering

Power Consumption : 80W

NFC Reader/scanner/QR reader : Support, built-in

Resolution : 1920 X 1080

Cabinet material : Metal case + Glass

Protype : Desktop / Floor standing /wall mounted(Optional)

Panel type : BOE Original A+ Grade IPS

Brightness : 350cd/m²

Passport Scanner : Optional

Power Supply : AC 100~240V, 50hz-60hz

POS terminal installation : Resever space

Brand Name : ZXTLCD

Model Number : ZXTLCD-RM190SLT

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T,

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Contact Now

19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors

19-inch Industrial Control Touch Screen Monitors: A wise choice for intelligent robot data monitoring.

19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors

In today's world where intelligent robots are becoming increasingly popular, efficient and precise data monitoring has become the key to enhancing robot performance and efficiency. To this end, we have meticulously crafted the 19-inch Industrial Control Touch Screen Monitors monitors solution, specifically designed for intelligent robot data monitoring panels, leading the industry with outstanding performance and compact structure.

19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors

19-inch Industrial Control Touch Screen Monitors: A clear vision for data monitoring.

As a core component for monitoring intelligent robot data, the 19-inch Industrial Control Touch Screen Monitors features a high-definition display that presents key metrics and status information of the robot's operation in real-time. Although the non-touch design simplifies the user interface, operators can still easily access and analyze data through an external keyboard or mouse, ensuring that the robot remains in optimal working condition. Its compact embedded structure perfectly integrates into the robot's body, saving space while enhancing overall aesthetics.

19-Inch ZXTLCD Self-Service Terminal Capacitive Embedded Industrial Control Touch Screen Monitors

19-inch Industrial Control Touch Screen Monitors: a stable and reliable monitoring partner.

In the complex and ever-changing working environment of intelligent robots, the 19-inch Industrial Control Touch Screen Monitors with an embedded display has become a reliable partner for robot data monitoring due to its industrial-grade high quality and stability. It not only withstands the erosion of harsh environments on the equipment but also operates stably for long periods, ensuring the continuity and accuracy of data monitoring. Whether in high temperatures, humidity, or vibration environments, this embedded display can handle it with ease, safeguarding the efficient operation of intelligent robots.

LCD Panel Parameters	Screen Size	19 Inch
	Display Area	375.2 mm.(Height) X 299.2(Width)mm.
	Aspect Ratio	4 : 3
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 1024
	Display Color	16.7m , 73% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Projected Capacitive Touchscreen Monitor
	Touch Points	10 Points
	Cover Glass	Morse Glass Size 7 Physically reinforced to prevent explosion
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Internal computer configuration (Choose one of two)	CPU	i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Linux	Linux
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃

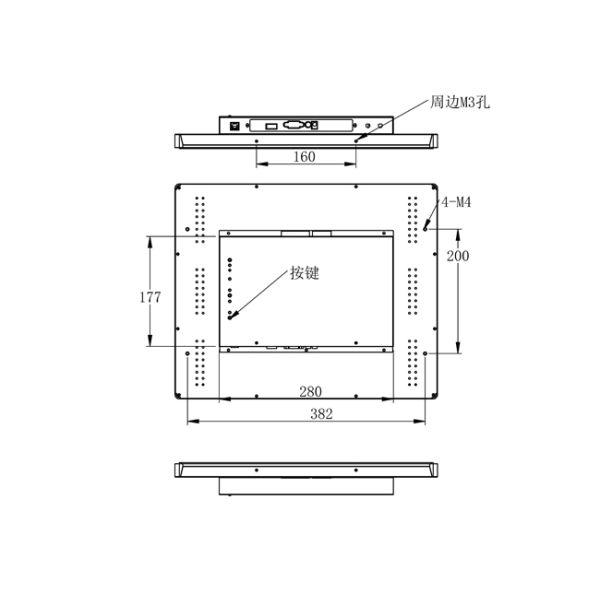

Package Size	Device Dimensions	422 X 346 X 51.7mm.
	Net Weight	6.5 Kilogram
	Package Size	47.4 X 40.6 X 10.1Centimeter
	Gross Package Weight per Unit	7 Kilogram

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
